Counterbalanced Stacker Service in Houston
ON-SITE COUNTERBALANCED STACKERS REPAIR & PREVENTIVE MAINTENANCE
Serving Houston & Surrounding Areas
Designed for heavy-duty lifting and effortless stacking, our stackers are a game-changer for productivity in warehouses and industrial environments.
Boasting cutting-edge features, user-friendly design, and sturdy construction, our stackers enable your team to move and lift with unparalleled ease, streamlining operations and maximizing space utilization.
Counterbalanced Stacker Services We Provide
Repair and maintenance for counterbalanced stackers — walkie, pedestrian, and stand-on models.
Mast & Lift:
Mast chain, lift cylinder, fork carriage, and backrest service and replacement.
Electrical & Motor Service:
Drive-motor rebuilds, traction-controller repair, and full electrical diagnostics.
Battery & Charger:
Battery load-testing, charger repair, watering, and BMS diagnostics.
Safety Systems:
Brake service, horn, lights, operator-presence sensors, and tilt safety checks.
Preventive Maintenance:
Scheduled PMs tuned to your duty cycle — prolonging equipment life.

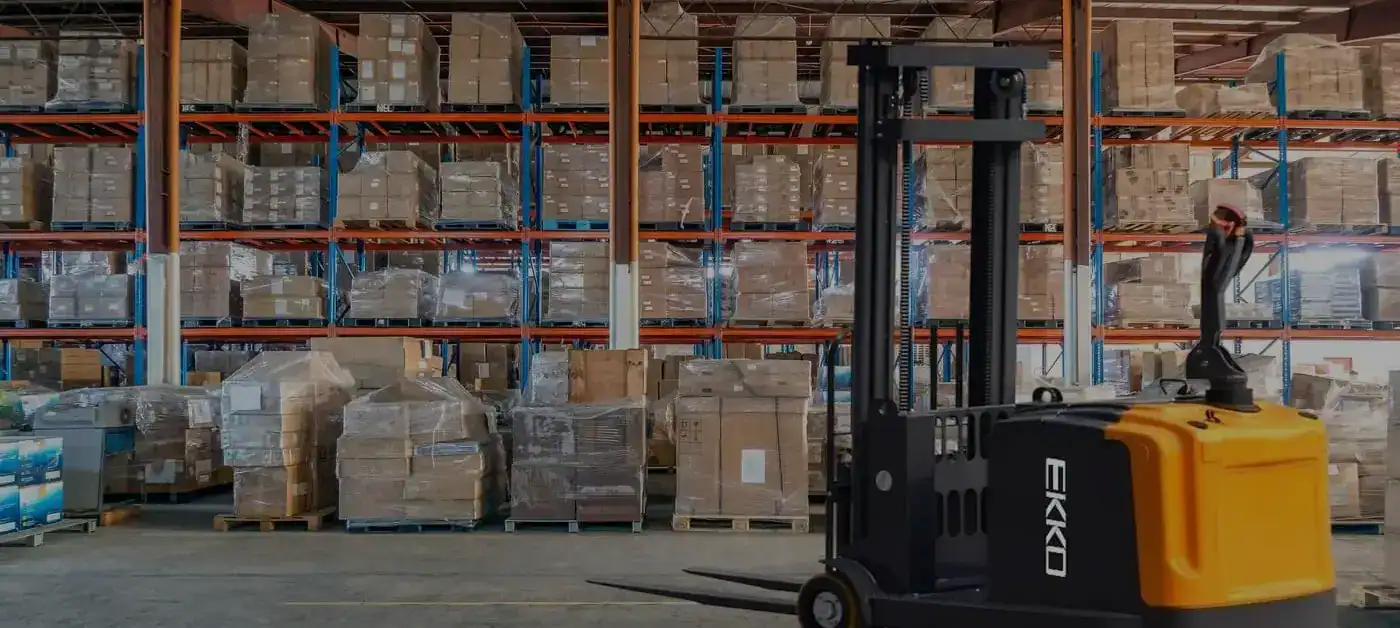

- Model: EK13S-177
- Drive type: Electric
- Type of operation: Walkie type
- Load Capacity (LBS): Load Capacity (LBS): 2860
- Load Centre (Inch): 23.6
- Distance between fork backrest and front wheel (Inch): 5.91
- Wheelbase (Inch): 46.81
- Service Weight (with battery) LBS: 4070
- Tire material: PU
- Driving wheel size Φ×w (Inch): Φ9.84×2.95
- Bearing wheel size Φ×w (Inch): Φ9.84×4.72
- No of Driving wheel, Balance wheel/Bearing wheel (X=Driving wheel): 2/1X
- Front wheelbase (Inch): 34.09
- Rear wheelbase (Inch): 0
- Mast/fork carriage tilt, forward/backward: 2/5
- Lowered mast height (Inch): 78.74
- Free lift height (Inch): 59.84
- Lift height (Inch): 177.17
- Extended mast height (Inch): 214.53
- Height of seat/stand-on platform (mm): 5
- The height of handle in the operation position (Inch): 43.5/56.69
- Overall Length (Inch): 107.8
- Body Length (Inch): 62.52
- Overall Width (Inch): 39.29
- Fork Size (Inch): 1.38/3.94/45.28
- Fork Width (Inch): 8.66-28.35
- Ground clearance under mast (Inch): 3.54
- Min Ground clearance (Inch): 3.39
- Aisle width for pallets 1000*1200 crossways (Inch): 115.95
- Aisle width for pallets 800*1200 lengthways (Inch): 120.28
- Turning Radius (Inch): 56.89
- Driving Speed, load/unload (km/h): 5.2/5.5
- Lifting Speed load/unload (mm/s): 100/120
- Lowered Speed load/unload (mm/s): 136/120
- Maximum gradeability load/unload (%): 6/8
- Brake Type: Electromagnetic brake
- Drive Motor (kW): 2.5
- Lift Motor (kW): 2.5
- Battery voltage/rate capacity (V/Ah): 24/210
- Battery Weight (±5%) (lbs): 460
- Type of drive control: AC
- Noise level (dB(A)): 70
- Steering type: EPS
Counterbalanced Stacker Services We Provide
Repair and maintenance for counterbalanced stackers — walkie, pedestrian, and stand-on models.
Mast & Lift:
Mast chain, lift cylinder, fork carriage, and backrest service and replacement.
Electrical & Motor Service:
Drive-motor rebuilds, traction-controller repair, and full electrical diagnostics.
Battery & Charger:
Battery load-testing, charger repair, watering, and BMS diagnostics.
Safety Systems:
Brake service, horn, lights, operator-presence sensors, and tilt safety checks.
Preventive Maintenance:
Scheduled PMs tuned to your duty cycle — prolonging equipment life.
24/7 EMERGENCY SERVICE
Downtime? We Respond Fast.
Your counterbalanced stackers is essential to keeping your warehouse moving. When it fails, every minute costs you in missed shipments, idle labor, and lost revenue. That's why Upright Forklift Repair runs a rapid-response service team available around the clock — including nights, weekends, and holidays.
Most emergency calls are dispatched the same day, with many Houston-area jobs started within a few hours of your first call. Our service trucks arrive stocked with common failure-point parts for counterbalanced stackers, so the vast majority of breakdowns are diagnosed and repaired in a single visit. Call (346) 559-8290 and we'll get a certified technician on the way.
- Same-Day Response Across Houston
- Factory-Trained Certified Technicians
- OEM & Quality Aftermarket Parts
Certified Technicians. Fast Response. Trusted Service.
Counterbalanced Stacker Repair Across Houston & Surrounding Areas
Why Choose Upright Forklift Repair?
We've built our reputation on showing up fast, diagnosing the problem correctly, and keeping your counterbalanced stackers running. Whether you need emergency repair, scheduled maintenance, or OEM parts, our technicians bring deep experience across every major brand — including Toyota, Crown, Hyster, Yale, Raymond, CAT, Mitsubishi, Clark, Komatsu, and Nissan.
Service Coverage Across Houston & Surrounding Cities
Our service area spans 45+ cities including Houston, Cypress, Katy, Sugar Land, Pasadena, Baytown, Humble, The Woodlands, Conroe, Spring, Deer Park, League City, and the surrounding Harris, Fort Bend, Montgomery, and Galveston county service zones.
What Every Service Call Includes
On-site diagnostic, full written service report, OSHA-compliant documentation, genuine OEM or quality aftermarket parts, and a follow-up PM recommendation tailored to your duty cycle.
Call Upright Forklift Repair at (346) 559-8290 to request service or schedule a preventive maintenance visit. We're ready when you need us.
